WT
| WT |
| /Engine Specificatiom |
| | Item | Unit | Type |
| OrderNO. | WT615.91 | WT615.92 | WT615.93 | WT615.94 | WT615.95 | T12.38 | T12.42 |
| 1 | Aspiration | | Turbochard&Intercooling |
| 2 | Cylinder | | 6 |
| 3 | ×Cylinder diameter*Stroke | mm | 126×130 | 126×155 |
| 4 | Displacement | L | 9.726 | 11.596 |
| 5 | Compression ratio | | 11:01 |
| 6 | Rated-power | kW | 170 | 196 | 213 | 235 | 250 | 279 | 309 |
| 7 | Rated-speed | r/min | 2200 | 2000 |
| 8 | Max torque | N·m | 950 | 1160 | 1230 | 1300 | 1350 | 1650 | 1820 |
| 9 | speed atmaxium torque | r/min | 1200-1500 |
| 10 | ***Min brake specific fuel comsumption | g/kW·h | ≤195 |
| 11 | Fuel comsuption at rate condition | g/kW·h | 220 |
| 12 | Fuel/oil consumption ratio | | ≤0.3% | ≤0.1% |
| 13 | Idel speed | r/min | | 600±20 |
| 600±50 | | | | |
| 14 | Ignition order | | 1-5-3-6-2-4 |
| 15 | fuel deliver advance angle | | ECU control byECU | 13±1 |
| 16 | ()Inlet/exhaust valve clearance(cold) | mm | 0.3/0.4 | 0.4/0.5 |
| 17 | Emission standard | | III/IV/V China State Standard III/IV/V |
| 18 | (/)Oil pressure(rate/idle point) | kpa | 350-550/120 |
| 19 | Lubricating oil sump capacity | L | 23 | 36 |
| 20 | Net weight | kg | 900 | 1100 |
| 21 | () | | closewise |
| crankshaft rotational direction (viewing from free end) |
| 22 | (//)Dimension(L*W*H) | mm | 1602/709/1109 | 1525/850/1090 |
| |

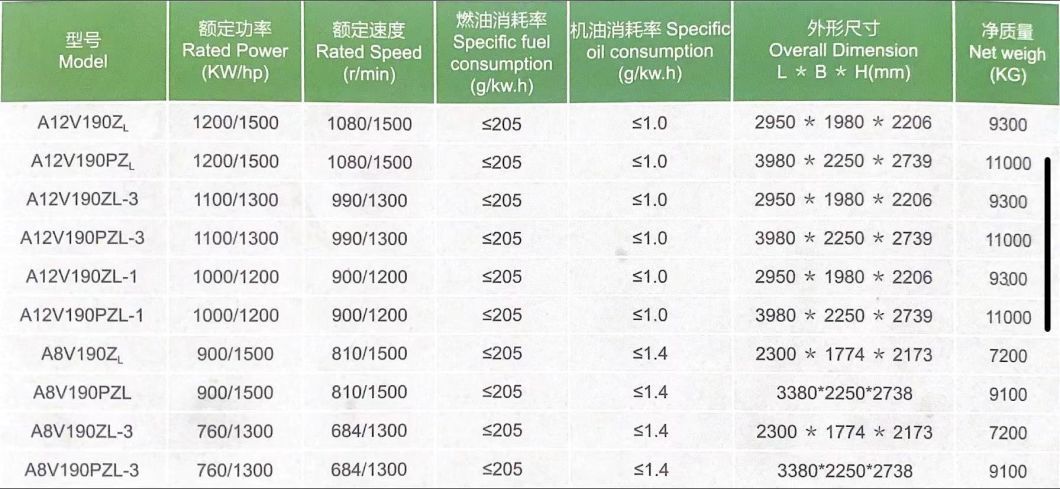

Jichai Chidong Shengdong 190 Series main products:
6190 spare parts spare parts, 8190, 12V190, Jichai H16V190 spare parts, spare parts spare parts for gas engine, generator biogas, spare parts spare parts for gas engine, spare parts marine engine.
190 parts supply: engine body, crankshaft, 12VB.03.00 diesel engine cylinder head assembly, gasoline engine cylinder head assembly, 16V gasoline engine cylinder head assembly, 190 connecting rod, connecting rod, mosaic tile thrust, pressure part, Z12VB.05.01C, 190 piston cylinder liner, supercharger (20GJ supercharger, SJ160 supercharger, J170 supercharger), air-air exchanger. 12VB.22.00b water pump, Jichai, full gasket repair kits, 190, air, camshaft electric starter motor, 3411 high play coupling, Changsha Zhengsheng piston ring set, 190 intake and exhaust and valve seat, three core speed sensor, instrument panel, Stitt spark plug, ignition coil, 127.90.10 high voltage cable, controller ignition, 190, 190 oil filter accessories 12VB.21 .00, high-pressure oil cooler, oil pump speed regulator, centrifugal filter, oil filter, Jichai Jichai 12V190 parts, Jichai Jichai air filter, triple filter, Jichai narrow V-belt, Jichai injector oil, ZCK Jichai150S835 injector coupling oil, ZCK150S840 injector coupling oil, 12C.29 .00 oil pump crank, 307.54. 00 pre-electric fuel pump, sea water, hydraulic pump Jichai Coupling parts.
Excellent quality: The company has always provided integrity, based on first-class products.
After-sales service: The company provides after-sales services based on customer requirements and needs.
On-time delivery: Our company provides just-in-time delivery with its streamlined supply chain.
