Jichai Power Chidong 190 Diesel Fishing Boat 6190 Hand Oil Pump for Small Watercraft

Model NO. : 6190

Size : Small

Transport Package : Wooden Cases

Specification : small

Trademark : Jichai

Origin : China

HS Code : 8409999000

Supply Ability : 50000pieces/Year

Certification : ISO9001

Standard Component : Standard Component

Technics : Push

Material : Aluminum

Type : Crankshaft Tile

Company Name : Jinan Guohua

Customization : Available | Customized Request

Place of Origin : china

MOQ : 1

Price : 10-1000

Packaging Details : Wooden box and carton packaging

Delivery Time : 15 days

Payment Terms : TT,western

Contact Now

Jichai Power Chidong 190 Diesel Fishing Boat 6190 Hand Oil Pump for Small Watercraft

DETAIL:

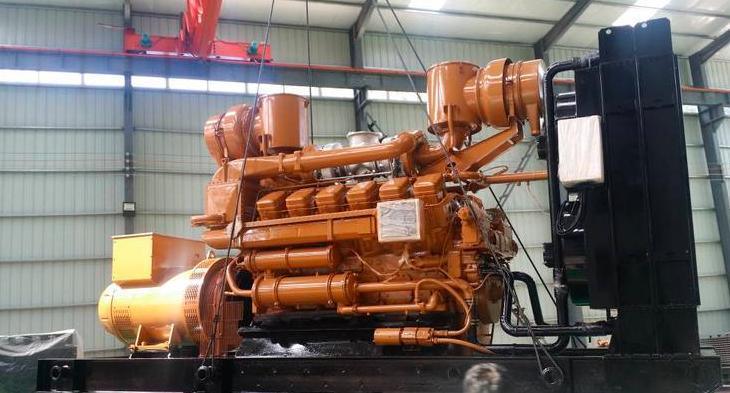

Diesel engine parameters:

Diesel engine model;Z12V190B

Type four stroke, direct injection combustion chamber, water - cooled, pressurized and intercooled

Number of cylinders and arrangement of 12 cylinder V 60° included Angle

Cylinder diameter × stroke -- mm 190×210

Total piston displacement -L 71.45

Rated speed -- r/min 1500

Average piston speed -m/S 10.5

Calibration power -- KW 1000

Fuel consumption rate -- g/ kW.h 209.4

Oil consumption rate -- g/ kW.h 1.6

Compression ratio 14;1

Cooling method Forced cooling

Lubrication mode pressure and splash lubrication

Overall dimension - mm 2692*1560*2070

Weight - 5300 kg

Exhaust temperature (before turbine, ºC) ≤600

The outlet water temperature (ºC) ≤85

1000KW diesel engine parameters

Diesel engine G12V190ZL1 parameters:

Type four stroke, direct injection combustion chamber, water - cooled, pressurized and intercooled

Number of cylinders and arrangement of 12 cylinder V 60° included Angle

Cylinder diameter × stroke -- mm 190×210

Total piston displacement -L 71.45

Rated speed -- r/min 1500

Calibration power -- KW 1000

Fuel consumption rate -- g/ kW.h ≤209.4±5%

Oil consumption rate -- g/ kW.h ≤1.6

Cooling method Forced cooling

Lubrication mode pressure and splash lubrication

Unit size -mm 2642*1560*2070

Weight - 5300 kg
