Model NO. : 12VB. 14.30.02B

Types of Parts : Cylinder Liner

Transport Package : Standard Export Package

Trademark : simeno

Origin : Jinan, China

HS Code : 840991100

Supply Ability : 50, 000 Pieces/Year

Conditions of Use : Marine

Output Type : AC Three Phase

Cooling Method : Water Cooling

Generator Type : Diesel Generator

Engine Type : Diesel

Customization : Available | Customized Request

Place of Origin : china

Certification : ISO9001

MOQ : 1

Price : 10-1000

Packaging Details : Wooden box and carton packaging

Delivery Time : 15 days

Payment Terms : TT,western

Contact Now

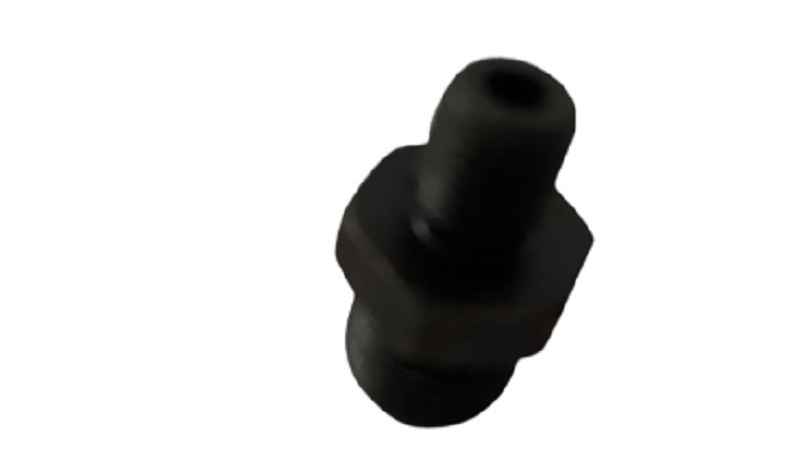

The Union is used for 12V190 engine fuel line parts, which brand is jinan jichai chidong.

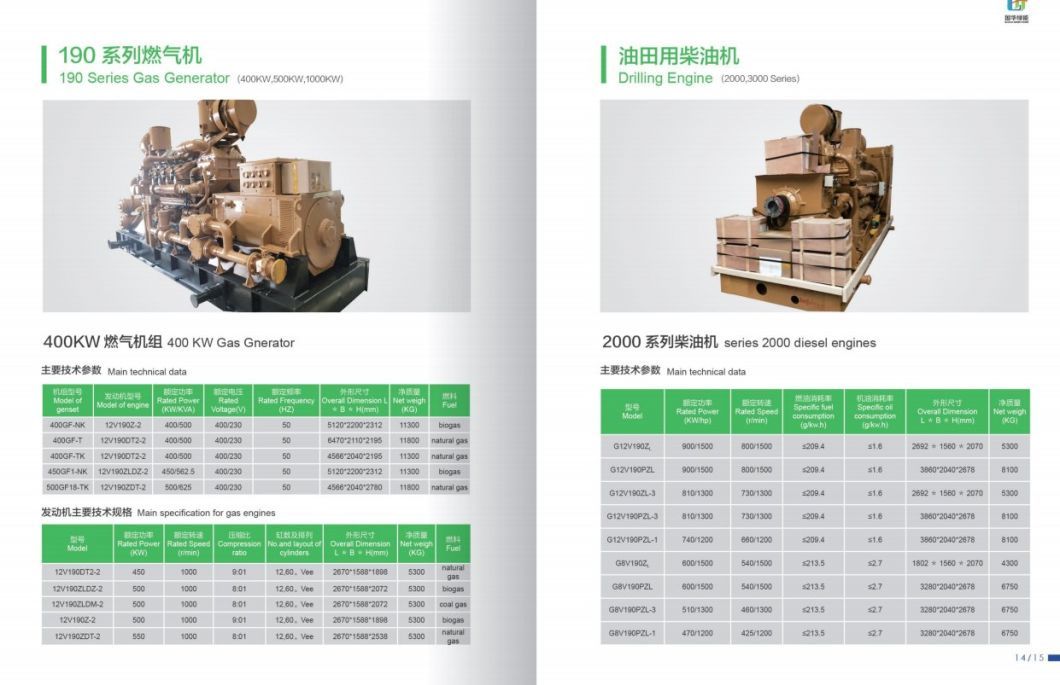

The 12V190 series specifiction is as follows:

Model	Specifications
Z12V190BC2	Rated Power(kw/hp)	882/1200
	Rated Speed(r/min)	1500
	Specific fuel consumption(g/kw'h)	<=209.4
	Specific oil consumption(g/kw'h)	<=1.6
	Overall Dimension(mm)	264215882070
	Net Weight	5300
	Packing	Woodern Box
Z12V190BC9	Rated Power(kw/hp)	882/1200
	Rated Voltage(V)	1500
	Specific fuel consumption(g/kw'h)	<=209.4
	Specific oil consumption(g/kw'h)	<=1.6
	Overall Dimension(mm)	264215882070
	Net Weight	5300
	Packing	Woodern Box
Z12V190BC11	Rated Power(kw/hp)	882/1200
	Rated Voltage(V)	1500
	Specific fuel consumption(g/kw'h)	<=209.4
	Specific oil consumption(g/kw'h)	<=1.6
	Overall Dimension(mm)	264215882070
	Net Weight	5300
	Packing	Woodern Box

Jichai Fuel Line Customized Request Chidong Engine Parts Union for Generator Type

No.	Part Number	Description
1	12VB.14.150.10	Leak fuel collecting pipe,right
2	12VB.14.160A	Leak fuel collecting pipe,left
3	12VB.14.02	Right shield
4	12VB.14.30.10B	Leak fuel collecting pipe
5	12VB.14.30.02B	Union
6	12VB.14.170.01	Plastic tube
7	12VB.14.50.02	Nut
8	12VB.14.50.03	Connecting nut
9	12VB.14.120.01	Tee
10	12VB.14.220A	Hose group
